ConstantVoltage Motor F12-080-RF-IH-D-000-000-0

Product Categories
Wuhan Hengmeisi Hydraulic Electromechanical Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ConstantVoltage Motor F12-080-RF-IH-D-000-000-0

Displacement : Other

Pump Type : Piston Pump

Warranty : 1 Year

Brand Name : Parker

Place of Origin : China

Connection Size : 1/4 inch

Dimension(L*W*H) : 20x20x20

Max. Horsepower : 0.5 HP

Maximum Flow Rate : 3000

Number of stages : 1 Stage

Operating Pressure : 100 bar

Power(W) : 1500

Pressure : 35

Showroom Location : Chile

Structure : piston pump, Piston Structure

Product name : Parker Hydraulic Pump

Power : 23mpa

Standard or Nonstandard : Standard Hydraulic

Application : Machinery

Material : Carbon Steel

Usage : Hdyraulic

MOQ : 1 Piece

MOQ : 1 ton

Price : $180-200 / ton

Contact Now

ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0

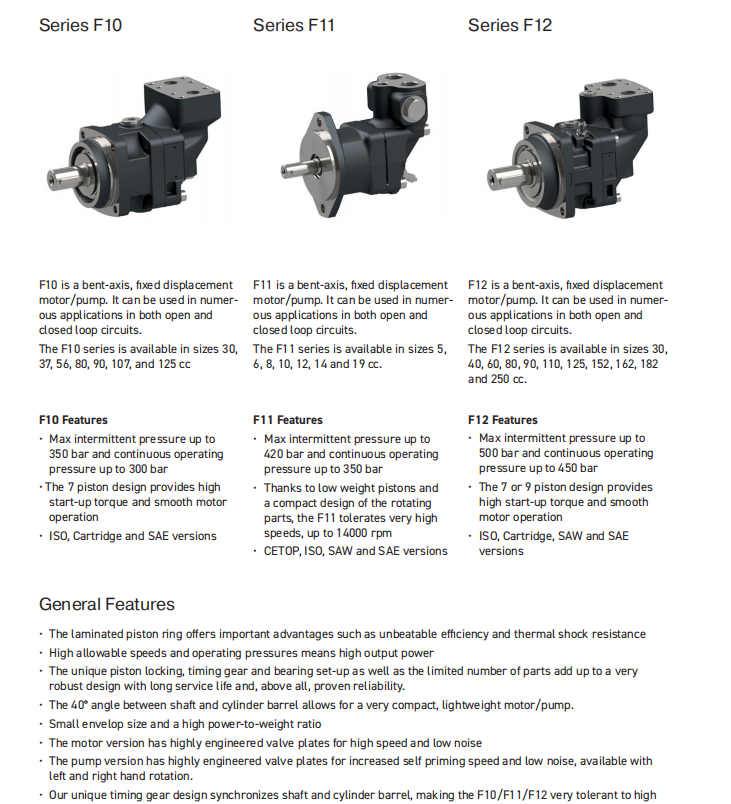

F10 is a bent-axis, fixed displacement
motor/pump. It can be used in numerous applications in both open and
closed loop circuits.
The F10 series is ailable in sizes 30,
37, 56, 80, 90, 107, and 125 cc
F10 Features
• Max intermittent pressure up to
350 bar and continuous operating
pressure up to 300 bar
• The 7 piston design provides high
start-up torque and smooth motor
operation
• ISO, Cartridge and SAE versions


F11 is a bent-axis, fixed displacement
motor/pump. It can be used in numerous applications in both open and
closed loop circuits.
The F11 series is ailable in sizes 5,
6, 8, 10, 12, 14 and 19 cc.
F11 Features
• Max intermittent pressure up to
420 bar and continuous operating
pressure up to 350 bar
• Thanks to low weight pistons and
a compact design of the rotating
parts, the F11 tolerates very high
speeds, up to 14000 rpm
• CETOP, ISO, SAW and SAE versions


F12 is a bent-axis, fixed displacement
motor/pump. It can be used in numerous applications in both open and
closed loop circuits.
The F12 series is ailable in sizes 30,
40, 60, 80, 90, 110, 125, 152, 162, 182
and 250 cc.
F12 Features
• Max intermittent pressure up to
500 bar and continuous operating
pressure up to 450 bar
• The 7 or 9 piston design provides
high start-up torque and smooth
motor operation
• ISO, Cartridge, SAW and SAE
versions


General Features
• The laminated piston ring offers important advantages such as unbeatable efficiency and thermal shock resistance
• High allowable speeds and operating pressures means high output power
• The unique piston locking, timing gear and bearing set-up as well as the limited number of parts add up to a very
robust design with long service life and, above all, proven reliability.
• The 40° angle between shaft and cylinder barrel allows for a very compact, lightweight motor/pump.
• Small envelop size and a high power-to-weight ratio
• The motor version has highly engineered valve plates for high speed and low noise
• The pump version has highly engineered valve plates for increased self priming speed and low noise, ailable with
left and right hand rotation.
• Our unique timing gear design synchronizes shaft and cylinder barrel, making the F10/F11/F12 very tolerant to high
'G' forces and torsional vibrations.
• Hey duty roller bearings permit substantial external axial and radial shaft loads.
ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0ConstantVoltage Motor F12-080-RF-IH-D-000-000-0
